L-Normalizer

Loudness Normalizer and True Peak Limiter VST, AU, AAX plugin
and standalone application

  Loudness Normalizer


The next logical step after releasing the loudness meter application, ALM 5.1, was to create an affordable, cross-platform loudness normalizing tool:
the L-Normalizer. This particular application can be very useful and helpful for audio engineers working in post production and broadcasting environments.

The major two steps of the workflow consists in analyzing the audio material and rendering an improved one. If you choose to normalize your material, you can pick between program loudness or short term loudness, if your materials are shorter than 30 seconds. Also, a True Peak Limiter is available with variable knee width, release time and true peak.

In order to analyze and normalize the audio file of your video, we’ve created the L-Normalizer Standalone version.


L-Normalizer workflows

ITU,EBU,ATSC,ARIB Loudness Normalizer

Features

  • Loudness Normalizer and True Peak Limiter – VST, AU and AAX plugins.
  • Fully compliant with international loudness standards : BS-1770 (rev.3), EBU R128, ATSC A/85 and ARIB TR-B32 specifications.
  • Analyzing and Rendering capabilities.
  • Channels Format : mono, stereo and 5.1 with automatic detection of track numbers.
  • Correction for either Program Loudness or Maximum Short Term Loudness.
  • Adjustable settings for True Peak Limiter: maximum true peak, release time and knee.
  • It can be used as an offline plugin but also offers real time processing, if the plugin is inserted on a track.

Descriptors

  • Integrated Loudness or Program Loudness (in LUFS or LU) – describes the long-term integrated loudness of an audio material from ‘start’ to ‘stop’.
  • Max Momentary Loudness (in LUFS) – the maximum value of the Momentary Loudness of the entire program calculated with a time window of 400ms.
  • Max Short Term Loudness (in LUFS or LU) – the maximum value of the Short Term Loudness of the entire program calculated with a time window of 3s.
  • Loudness Range (in LU) – loudness dynamic range from ‘start’ to ‘stop’ that helps you decide if dynamic compression is necessary.
  • Max True Peak Level (in dBTP) – indicates the maximum value of the signal waveform in the continuous time domain (this value is calculated using inter-sample peaks that can be missed in quantization).
  • Release Time (in sec) – the time it takes to turn up the level again after the signal peaked.
  • Knee Width (in dBTP) – controls whether the bend in the limiter characteristic has a sharp angle or has a rounded edge. The Knee Width is the threshold-determined point where the limiter becomes on/ starts working.

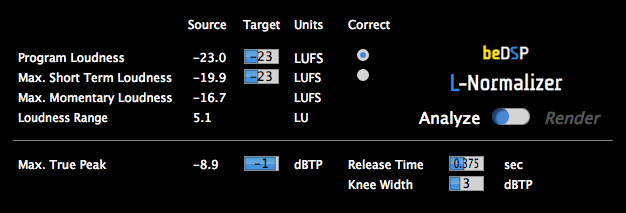

Interface

1. Integrated Loudness or Program Loudness, both Source and Target values.
2. Max. Short Term Loudness, both Source and Target values.
3. Max. Momentary Loudness.
4. Loudness Range.
5. The Correction parameter for normalization: Program Loudness or
Max. Short Term Loudness.
6. Max. True Peak, both Source and Target values.
7. Release Time.
8. Knee Width.
9. Analyze or Render processing option.

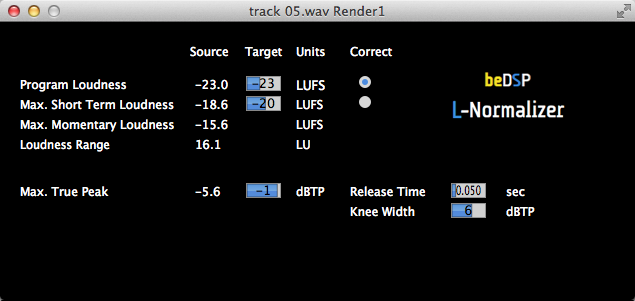

Standalone version

Simply drag and drop the audio material you want to analyze or normalize.
You will see that the measuring will start and soon you will have the results.

Choose the parameters you want to correct (Program Loudness or Max. Short Term Loudness ) and set the target values for normalization (Max. True Peak and either Program Loudness or Max. Short Term Loudness ).
Click on File Menu -> Render for rendering.

After Rendering L-Normalizer analyzes again your audio material and you can see the results on the source column.

You can save the rendered file by clicking File -> Save and the files will be saved in the location you choose.

You are able to render your file until you are satisfied, by modifying the parameters. You can go back to any of the rendered versions, up until the original, by clicking File -> Undo. The name of the file is written in the upper bar, so you will know at any time which version you are viewing.

Minimum System Requirements


MAC:
Dual Core CPU with SSE2 support
2GB RAM
OSX10.6
PC:
Dual Core CPU (Intel or AMD)  with SSE2 support
2GB RAM
Windows 7

Available Formats


MAC:
VST 2.4 universal binary
AU universal binary
AAX universal binary
Standalone
PC:
VST 2.4 universal binary
AU universal binary
AAX universal binary
Standalone

TRY BEFORE YOU BUY

You can download a 30-day trial, without feature limitations.
